FCKEditor Configuration in ASP.NET

In my previous post, I demonstrated how to install and integrate the FCKEditor control, an open source, rich format text editor, with ASP.NET. The installation and integration are actually easy, and if you followed through the previous post, you should have a screen like this after you run the demo project:


The first thing came to your attention when you see this page might be, there are too many toolbar items in the editor, how can I remove those I don’t need?

The good news is the FCKEditor control is highly configurable and the configuration is actually quite simple once you know where to start with. Now let’s begin.

1. Configuration Options

Everything about the FCKEditor control is controlled by a configuration file. By default, the file is called “fckconfig.js” in the root directory of the FCKEditor installation folder. The FCKEditor also supports custom configuration file, therefore, there are two options to configure the FCKEditor.

  • Modifying the main configuration file “fckconfig.js”
  • Creating custom configuration file

This post will focus on configuring the editor by the modification of the main configuration file. Once you are familiar with this option, it will be quite easy to create your own custom configuration file.

2. Modification of the Main Configuration File

The configuration file is well documented and the variables and properties are intuitively named, so it should take you much time to understand how to configure the control. In the following sections, I will show you the properties that I usually configure.

2.1 Skin Selection

From the Solution Explorer in Visual Studio 2005, open “fckconfig.js” file and scroll down to this line:

FCKConfig.SkinPath = FCKConfig.BasePath + 'skins/default/' ;

The FCKEditor control comes with three skins: “default” (as shown in above), “office2003”, and “silver”. If you want to use a different skin, just replace “default” in the above line with “office2003” or “silver”. Here are the screen shots:

2009-01-23_145904

(skin: office2003)

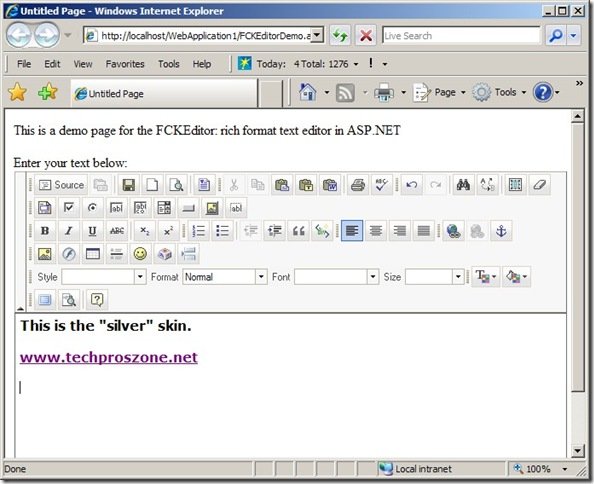

2009-01-23_150117

(skin: silver)

2.2 Plugin Selection

The FCKEditor comes with several useful plugins, such as autogrow, but some of them are not activated by default.

Scroll down “fckconfig.js” file to this line:

// FCKConfig.Plugins.Add( 'autogrow' ) ;
// FCKConfig.Plugins.Add( 'dragresizetable' );

Uncomment those two lines will activate those two plugins: autogrow and dragresizable. Likewise, comment those two lines will deactivate those two plugins. You can add more plugins with the same method.

2.3 Language Selection

Scroll down to this section:

FCKConfig.AutoDetectLanguage    = true ;
FCKConfig.DefaultLanguage        = 'en' ;
FCKConfig.ContentLangDirection    = 'ltr' ;

If you want FCKEditor to support multi language and you didn’t delete any language files as mentioned in my previous post, you can leave these three lines alone. However, if you only use one language, you can change AutoDetectLanguage=false and set DefaultLanguage to your language.

2.4 Behavior Configuration

This section of code controls some basic behaviors of the FCKEditor control:

FCKConfig.StartupFocus    = false ;
FCKConfig.ForcePasteAsPlainText    = false ;
FCKConfig.AutoDetectPasteFromWord = true ;    // IE only.
FCKConfig.ShowDropDialog = true ;
FCKConfig.ForceSimpleAmpersand    = false ;
FCKConfig.TabSpaces        = 0 ;
FCKConfig.ShowBorders    = true ;
FCKConfig.SourcePopup    = false ;
FCKConfig.ToolbarStartExpanded    = true ;
FCKConfig.ToolbarCanCollapse    = true ;
FCKConfig.IgnoreEmptyParagraphValue = true ;
FCKConfig.FloatingPanelsZIndex = 10000 ;
FCKConfig.HtmlEncodeOutput = false ;

FCKConfig.TemplateReplaceAll = true ;
FCKConfig.TemplateReplaceCheckbox = true ;

I usually set AutoDetectPasteFromWord=false because it only works in IE anyway, and I then set ForcePasteAsPlainText=true to remove some format junks and to force user to use the FCKEditor to format the content.

2.5 Toolbar Customization

This section of code defines two sets of toolbar items: Default and Basic.

FCKConfig.ToolbarSets["Default"] = [
    ['Source','DocProps','-','Save','NewPage','Preview','-','Templates'],
    ['Cut','Copy','Paste','PasteText','PasteWord','-','Print','SpellCheck'],
    ['Undo','Redo','-','Find','Replace','-','SelectAll','RemoveFormat'],
    ['Form','Checkbox','Radio','TextField','Textarea','Select','Button','ImageButton','HiddenField'],
    '/',
    ['Bold','Italic','Underline','StrikeThrough','-','Subscript','Superscript'],
    ['OrderedList','UnorderedList','-','Outdent','Indent','Blockquote','CreateDiv'],
    ['JustifyLeft','JustifyCenter','JustifyRight','JustifyFull'],
    ['Link','Unlink','Anchor'],
    ['Image','Flash','Table','Rule','Smiley','SpecialChar','PageBreak'],
    '/',
    ['Style','FontFormat','FontName','FontSize'],
    ['TextColor','BGColor'],
    ['FitWindow','ShowBlocks','-','About']        // No comma for the last row.
] ;

FCKConfig.ToolbarSets["Basic"] = [
    ['Bold','Italic','-','OrderedList','UnorderedList','-','Link','Unlink','-','About']
] ;

The value inside of the square bracket determines which toolbar icon will be loaded. When you drop and drop an FCKEditor control on your web page, by default the property ToolbarSet=”Default”, which points to the first ToolbarSets in the above code snippet. If we set the property ToolbarSet=”Basic”, then the page will become this:

2009-01-23_154318

You can also create your own toolbar set. For example, if we want to add some more formatting options, such as font and size selection, you can add a new ToolbarSets say called “NormalUser” (assume you have a page that only normal user can access and you want to give normal user more option to format their input), the ToolbarSets[“NormalUser”] will look like this:

FCKConfig.ToolbarSets["NormalUser"] = [
    ['Style','FontFormat','FontName','FontSize'],
    ['Bold','Italic','-','OrderedList','UnorderedList','-','Link','Unlink','-','About']
] ;

Let’s change our FCKEditor’s ToolbarSet=”NormalUser”, the page will look like this:

2009-01-23_155313

Now you have a simple, custom FCKEditor control configured. You should be quite familiar with the control by now and should be able to configure more of it to meet your needs, such as the file upload, the context menu, and the hot keys, etc.

If you would like to see an example of how to actually use FCKEditor to update data in ASP.NET, then read this post of mine.

Have fun!
