FCKEditor integration with ASP.NET

0. Why I wrote this post?

FCKEditor is an open-source, rich text editor for the web application, its features include multi browser compatibility, XHTML1.0 output, CSS support, font and text formatting, image insertion with upload and server browsing, table creation and editing, spell checking, toolbar customization, and more. It also integrates with many major web application languages, such as ASP, ASP.NET, PHP, Java, ColdFusion, Perl, JavaScript and more. Although there is a developer’s guide on FCKEditor’s official web site on how to install, configure, integrate and customize FCKEditor in ASP.NET web application, it is not detailed enough for the first-time user and lacks of screen shots in each step. I hope this post will be a step-by-step tutorial for those who are interested in integrating FCKEditor with ASP.NET.

1. Configuring Your Development Environment

This post will focus on the integration of FCKEditor 2.6.3 with ASP.NET 2.0, and might also work with the future version of FCKEditor. The development environment used in this post is Microsoft Visual Studio 2005.

Unlike the integration with other web languages, the integration with ASP.NET requires two components:

After the above two packages are downloaded, unzip them to two different directories on your computer.

1.1. Reference FCKEditor in ASP.NET

Like any other DLL files, you will need to add a reference to FCKEditor.NET DLL in your ASP.NET project before you can use it. You have two options to do it:

  • Manual copy. Go to the directory where you have unzipped and saved the FCKEditor.NET package, then go to bin/Release/2.0 folder to copy FredCK.FCKeditorV2.dll file and paste it into your project’s bin folder.
  • Adding a reference in your project. Right-click your project name from the Solution Explorer in Visual Studio 2005, and select “Add Reference…” option. Then click “Browse” tab and select the FredCK.FCKeditorV2.dll file from the directory mentioned in the “Manual copy” step.

1.2. Toolbox Setup for FCKEditor in ASP.NET

This step is optional if you are comfortable to manually register FCKEditor control on ASP.NET web page like this:

<%@ Register Assembly="FredCK.FCKeditorV2" Namespace="FredCK.FCKeditorV2" TagPrefix="FCKeditorV2" %>

However, if you would like to be able to drop and drop the FCKEditor control from the Toolbox in Visual Studio 2005, then you will need first add the FCKEditor control in the Toolbox. To add a control in the Toolbox is very stright-forward, but before we add the new item to the Toolbox, I would like to first add the FCKEditor DLLfile to the GAC of my computer, so when I add the FCKEditor control to the Toolbox, the control will be loaded from GAC and be independent from where I have saved it in, thus deleting or moving the DLL file will not break my Toolbox.

a). Add FCKEditor assembly (dll) to the Global Assembly Cache

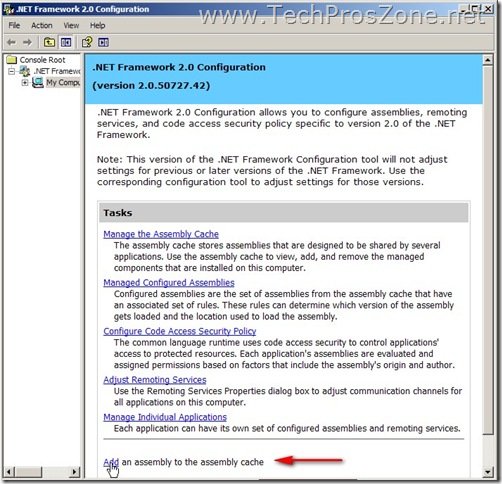

Launch .NET Framework 2.0 Configuration (Control Panel –>Administrative Tools->.NET Framework 2.0 Configuration), then click “Add an assembly to the assembly cache”

2009-01-22_142354

Browse to the directory where you have saved the DLL file and select the file, then click “Open”.

Add_an_Assembly

Close out .NET Framework 2.0 Configuration.

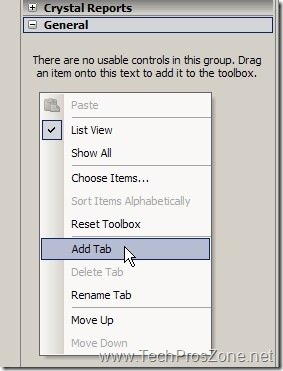

Switch to Visual Studio 2005 IDE and open your Toolbox. If this is your first third-party control be added, you might want to add a new tab in the Toolbox so it won’t be mixed up with other controls. To do so, right-click any empty space in your Toolbox and select “Add Tab”. Give a name to the new tab, say “Third-party”.

2009-01-22_144019

2009-01-22_144252

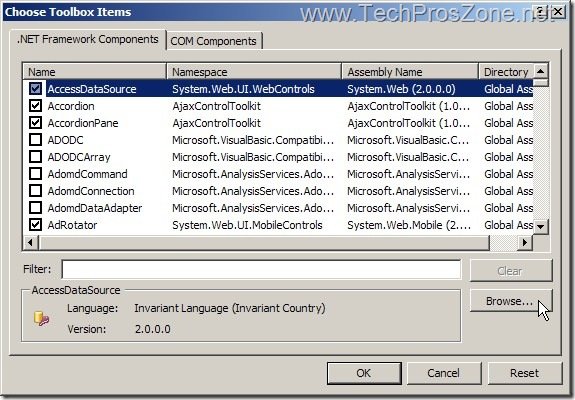

Now we can add the FCKEditor control to the Toolbox. Right-click the empty space under the “Third-party” tab and click “Choose Items…” option. When “Choose Toolbox Items” window pops up, click “Browse” button.

2009-01-22_144642

Browse to the folder where you have saved the DLL file and select the DLL file, then click “Open” (or double-click the file).

2009-01-22_145627

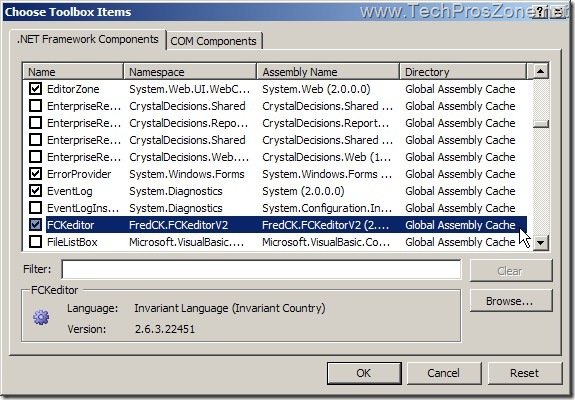

The DLL will be loaded from the GAC because it is already added in the GAC.

2009-01-22_150111

Click “OK” to close out the window and go back to the Visual Studio 2005 IDE. Now the FCKEditor control is successfully added in the Toolbox.

2009-01-22_150507

The development environment has been configured to use the FCKEditor control. Now let’s see how to actually use and customize the FCKEditor.

2. Using FCKEditor in Web Application

Let’s write a simple demo page to show how to use this nice editor, and then I will talk about how to customize the editor.

The first thing we need to do is to include the actual editor files (main code as mentioned earlier such as the html, css, js, and image files) in our project. Let’s add a new folder called “Common” in the domo project, then copy the unzipped editor files including its subfolders to the “Common” folder.

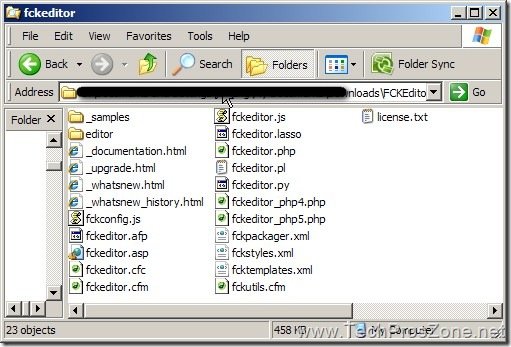

By default, all files are stored in a folder called “fckeditor” after unzip.

2009-01-22_152402

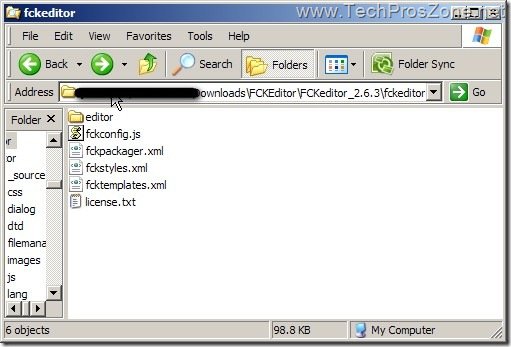

However, not all the files are needed. So let’s first remove some of the files/folders to reduce the total size of the editor before we include it in our project.

  • All folders/files start with an underscore “_” can be removed
  • Any skin you are not using from the “editor/skins” directory can be removed
  • Any “smiley” collection you are not using from the “editor/images/smiley” directory can be removed
  • Any plugin you don’t need from the “editor/plugins” directory can be removed

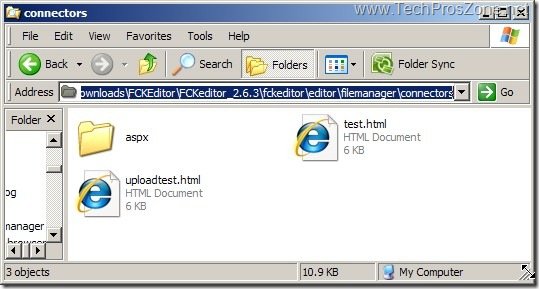

  • Any connector you don’t need from the “editor/filemanager/connectors” directory can be removed.
  • Any “fckeditor.ext” file you don’t need from the root of the editor package can be removed. In ASP.NET, we can remove files such as fckeditor.js, fckeditor.afp, fckeditor.cfc, etc.

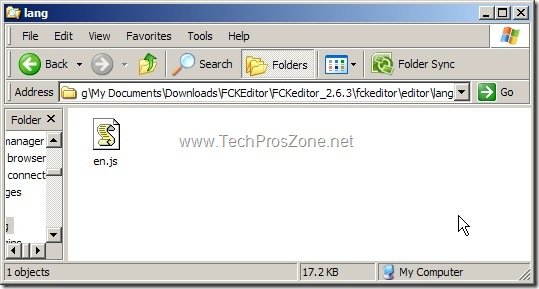

  • Any “<lang>.js” file you don’t need from the “editor/lang” directory can be removed. In our case, we only need en.js file.

2009-01-22_154949

2009-01-22_155439

2009-01-22_155708

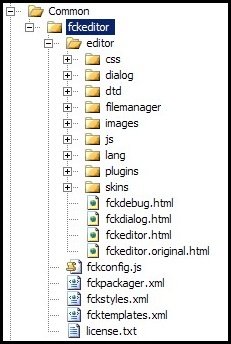

After the trim, we can copy the “fckeditor” folder and its contents to the “Common” folder and then include the entire “fckeditor” folder in our project.

2009-01-22_160438

Now let’s add new web page called “FCKEditorDemo.aspx”, and drag and drop a FCKEditor control from the Toolbox on the page.

2009-01-22_161225

There are some properties you can change in the Properties window. Right now, let’s set Width=”750px”, Height=”400px”, and leave all the others with the default values. In code-behind, you will need to set the FCKEditor’s BasePath property (you can set it in the Properties window, but I found it is easier to set it in the code):

Protected Sub Page_Load(ByVal sender As Object, ByVal e As System.EventArgs) Handles Me.Load
    If Not IsPostBack Then
        Me.FCKeditor1.BasePath = Request.ApplicationPath() & "/Common/fckeditor/"
    End If
End Sub



You will also need to set ValidateRequest=”false” in the Page directive, otherwise, upon postback, ASP.NET will throw an exception error. The FCKEditor control has built-in validation to stop malicious code input, so you don’t need to be concerned about setting ValidateRequest=”false”.

Compile and run the demo page, you will see a page like this:

2009-01-22_165617

In next post, I will show you how to customize the FCKEditor, such as the functionality, the toolbar items, etc. So stay tuned.
